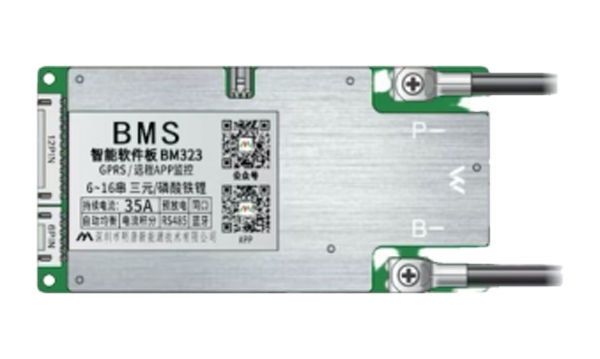

BM323B
▪ 高精度计时
▪ 内置电池与掉电检测
▪ 低电压警告
▪ 多种报警功能
| 支持串数 Support Series | 6-16S(铁锂最低可支持7串） (LiFePO4 at least supports 7 series) |
| 持续电流 Continuous Current | 30A/35A/45A |
| 过电流方案 Overcurrent solution | MOS |
| 出线方式 Charging Method | 同口 Same Port |
| 电池温度检测 Temperature Detection | 2路 2 Channels |
| 均衡方式 Balanced Approach | 自动均衡 Passive Balancing 30-80mA |
| 自耗电电流 Self-Discharge Current | 10-25mA |
| 低功耗电流 Low Power Consumption | 10-20μA |
| 通信 Communication | LTE、RS485、一线通SIF |
| 尺寸规格 Size | 130*65*12mm |
| 标配功能 Basic Function | 把手 Special Handle/陶瓷天线Ceramic Antenna 云平台及APP远程控制 Software Remote Control 空中升级 OTA 蓝牙 Bluetooth 电流积分Current Integration 开机唤醒 Power on Wake-up 负载检测 Load Detection 防打火anti-spark |
| 可选配功能 Optional Function | 蜂鸣器Buzzer 光感防拆 Light Sensor Anti-Tamper 预加热 Preheating 电量显示灯板 Battery Level Indicator Panel |
| 应用场景 Application Scenarios | 电动两轮车 Electric Two-wheeler 共享电动车 Shared Electric Vehicle 民用换电 Civilian Battery Swap AGV |
